Description:

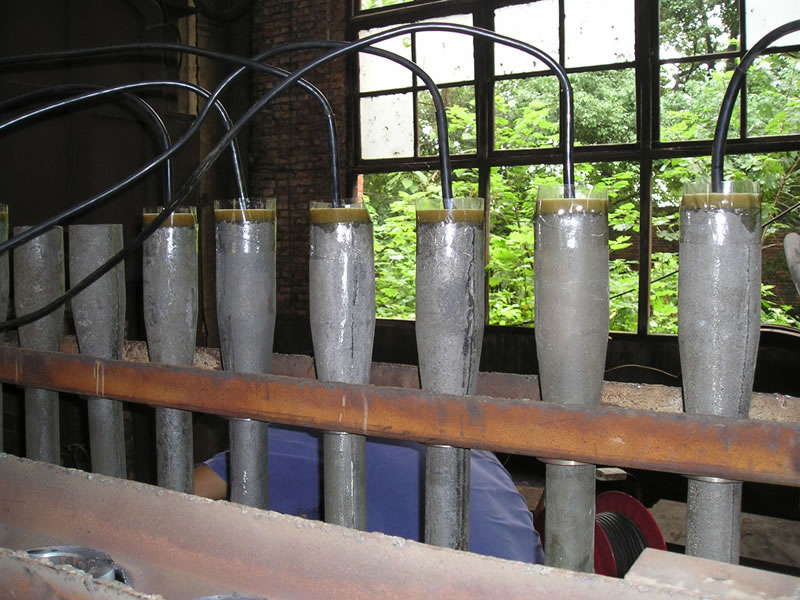

Corroco designed and produced solid or tubular silicon iron anodes for the effective cathodic protection for underground and underwater structures by the impressed current method. This high silicon cast iron anode (high silicon iron tubular anode) is manufactured from high silicon cast iron alloy, which is one of the most effective anode materials in various environments. It can be installed in deep ground bed, seawater or brackish water. CORROCO adopts the metal mould casting technology to produce high-quality alloys.
Suitable Installation:
Deep ground beds;
Seawater or brackish water;
With or without carbon backfill;

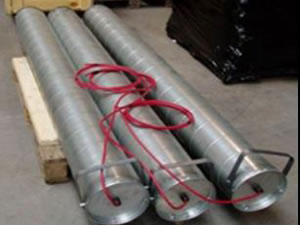

With or without canisters
Chemical Compositions of Silicon Iron Anode:
Chemical Composition:
|
Silicon (Si)
|
14.20-15.75%
|
Manganese (Mn)
|
1.5% max.
|
Carbon (C)
|
0.70-1.10%
|
Chromium (Cr)
|
3.25-5.00%
|
Molybdenum (Mo)
|
0.20% max.
|
Copper (Cu)
|
0.50% max.
|
Iron (Fe)
|
balance
|
|
Typical Analysis by ASTM A518-86 Grade 3 and BS. 1591
|
Specifications of High Silicon Cast Iron Anode:
1. Consumption of Anode Material
2. In tests and real life installation, up to 99.8% of the anode material was consumed. Consumption figures of 88 % to 93.5% are common. The consumption rates are:
Environment
|
Current Density (A/m2)
|
Consumption Rate (Kg/A. Year)
|
|
Coke Backfill
|
10-30
|
0.1
|
|
Fresh Water
|
10-30
|
0.15
|
|
Seawater
|
10-50
|
0.5
|
|
Soil
|
10-30
|
0.3
|
Tensile Strength
|
103 N/mm2
|
Compressive Strength
|
689 N/mm2
|
Brinell Hardness
|
520 HB
|
Density
|
7.0 g/cm3
|
Melting Point
|
1300°C
|
Coefficient of Linear Expansion
|
1.86*10-5/0C (0-1000C)
|
Parameters of Silicon Iron Anode:
Standard Sizes of Solid Anodes:
|
TYPE
|
O.D.
|
Length
|
Weight(kg)
|
Surface Area(m2)
|
|
CS-12
|
1.5"
|
60"
|
12.7
|
0.2
|
|
CS-13
|
2.0"
|
60"
|
22.7
|
0.25
|
|
CS-14
|
2.5"
|
60"
|
33.5
|
0.32
|
|
CS-15
|
3.0"
|
60"
|
49.0
|
0.38
|
|
Dimensions and weights shown are normal with +/-5 percent. Non-standard sizes and weights of anode are available upon request.
|
Standard Sizes of Tubular Anode:
|
Type
|
Dimension (mm/inch)
|
Surface area
(m2/ft2)
|
Weight
(kg/lb)
|
O.D
|
I.D
|
Length
|
|
HL-TS-1
|
56.0 (2.20)
|
37.0 (1.46)
|
2134 (84)
|
0.375 (4.04)
|
21.0 (46.3)
|
|
HL-TS-2
|
66.0 (2.60)
|
42.5 (1.67)
|
2134 (84)
|
0.442 (4.76)
|
28.8 (63.5)
|
|
HL-TS-3
|
68.6 (2.70)
|
42.5 (1.67)
|
2134 (84)
|
0.460 (4.95)
|
32.0 (70.5)
|
|
HL-TS-4
|
96.0 (3.80)
|
76.0 (3.00)
|
2134 (84)
|
0.644 (6.93)
|
41.0 (90.4)
|
|
HL-TS-5
|
122.0 (4.80)
|
88.0 (3.46)
|
2134 (84)
|
0.818 (8.80)
|
80.6 (177.7)
|
|
HL-TS-6
|
122.0 (4.80)
|
100.0 (4.0)
|
2134 (84)
|
0.818 (8.80)
|
55.3 (121.8)
|
|
HL-TS-7
|
56.0 (2.20)
|
37.0 (1.46)
|
1524 (60)
|
0.268 (2.89)
|
14.3 (31.6)
|
|
HL-TS-8
|
66.0 (2.60)
|
42.5 (1.67)
|
1524 (60)
|
0.316 (3.40)
|
20.6 (45.5)
|
|
HL-TS-9
|
96.0 (3.80)
|
76.3 (3.00)
|
1524 (60)
|
0.460 (4.95)
|
30.0 (66.1)
|
|
HL-TS-10
|
122.0 (4.80)
|
88.0 (3.46)
|
1524 (60)
|
0.584 (6.29)
|
57.7 (127.1)
|
|
HL-TS-11
|
122.0 (4.80)
|
100.0 (4.0)
|
1524 (60)
|
0.584 (6.29)
|
39.2 (86.4)
|
Corroco International Industrial Co., Ltd is a professional manufacturer and supplier of silicon iron anode in China. In addition to this high silicon cast iron anode, we are also engaged in producing MMO anode, graphite anode, flexible anode, etc. With 12 years' production experience, our products have been exported to the United States, Canada, Britain, Germany, Iran, Pakistan, India, Kuwait, Dubai, Saudi Arabia, the Philippines, Malaysia, Singapore, Congo, Turkey, etc.
