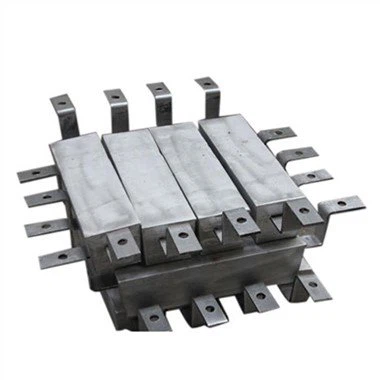

Hull Aluminum Alloy Sacrificial Anodes For Ship Cathodic Protection

English

Spanish

Arabic

Description:

Hull Anodes provide cathodic protection in varying marine environments such as salt water, freshwater, and brackish water. Our sacrificial hull anodes conform to the highest Mil-Spec standards and come in a variety of shapes and sizes. Depending on the type of metal and water we offer zinc, aluminum, and magnesium galvanic anodes for all of your underwater cathodic protection needs. There are three type of hull anodes: Bolt-On Hull Anodes,Weld-On Hull Anodes, Solid Plate Hull Anodes.

Advantage
Aluminum anode has lower driving potential and high current capacity ,they protect the equipment for a longer time.

Application:
Aluminum anodes applications include ship hulls, tank interiors, offshore structures, submerged pipelines, piers, pilings, etc..

Chemical compositions of hull Aluminum Anode:
1. CA-I General Aluminum Alloy Anode
2. CA-II High Performance Aluminum Alloy Anode
3. CA-III High Activation Aluminum Alloy Anode
4. CA-IV High Temperature Resistance Aluminum Alloy Anode

TYPE	Zn %	In %	Cd %	Sn %	Mg %	Ti %	Imp			Al %
TYPE	Zn %	In %	Cd %	Sn %	Mg %	Ti %	Si %	Fe%	Cu%	Al %
CA-I (Al-Zn-In)	3.5-5	0.02-0.05					0.1max	0.09max	0.006max	Blance
CA-II (Al-Zn-In-Mg-Ti)	4.0-7.0	0.02-0.05			0.50-1.5	0.01-0.08	0.1max	0.09max	0.001max	Blance
CA-III-A (Al-Zn-In-Sn)	2.5-5.2	0.02-0.045		0.018-0.035			0.1max	0.09max	0.006max	Blance
CA-III-B (Al-Zn-In-Si)	5.5-7.0	0.025-0.035					0.10-0.15	0.09max	0.006max	Blance
CA-III-C (Al-Zn-In-Sn-Mg)	2.5-4.0	0.02-0.05		0.025-0.075	0.5-1.0		0.1max	0.09max	0.006max	Blance
CA-IV (Al-Zn-In-Cd)	2.5-4.5	0.018-0.05	0.005-0.02				0.1max	0.09max	0.006max	Blance
CA-V (High Potential Al anode)

Electrochemical Properties:

TYPE	Open circuit voltage (-V)	Closed Circuit Voltage (-V)	Actual capacitance A.H/KG	Efficiency % min
CA-I	1.10-1.18	1.05-1.12	2450min	90min
CA-II	1.10-1.18	1.05-1.10	2600min	94min
CA-III-A	1.10-1.18	1.05-1.10	2450min	90min
CA-III-B	1.10-1.18	1.05-1.10	2450min	90min
CA-III-C	1.10-1.18	1.05-1.10	2450min	90min
CA-IV	1.10-1.18	1.05-1.12	2450min	90min
CA-V	1.45-1.50	1.40-1.45	2080min	75min

Hull Al anode Size

Model	Dimension LxWxH mm	Weight KG
CAH-1	800x140x57	16
CAH-2	800x140x40	12
CAH-3	600x120x50	10
CAH-4	500x100x40	5.5
CAH-5	400x100x40	4.0
CAH-6	300x100x40	3.0
CAH-7	300x150x40	5.0
CAH-8	390x120x50	6.5

Al anode for Dock and offshore projects

Model	Dimension Lx(Top Width+BottomWidth)xH	Weight KG
CAD-4	500x(105+135)x100	16
CAD-5	1500x(170+200)x180	130
CAD-6	2300x(220+240)x230	310
CAD-7	900x(150+170)x160	58
CAD-8	800x(200+280)x150	80
CAD-9	1250x(115+135)x130	56
CAD-10	420x(160+180)x170	32
CAD-11	1600x(200+210)x220	190
