Liner Mixed Metal Oxide Anodes For Cathodic Protection

English

Spanish

Arabic

Description:

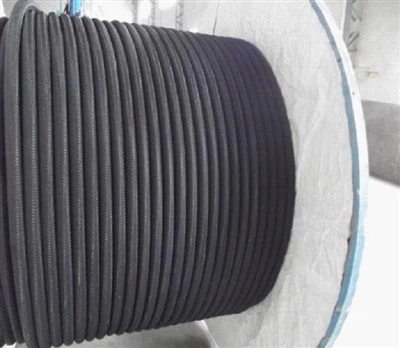

MMO linear anodes, also known as flexible anodes, are an ideal product for use when a low-current, evenly distributed cathodic protection system is needed. The core of the anode is composed of high-grade, titanium wire with a Ir–Ta mixed metal oxide catalyst coating. The titanium wire is prepackaged in a porous, non-woven fabric "sock" that contains high conductivity calcined petroleum coke breeze -- enhancing the anodes abrasion and damage resistance.

Advantage:

The MMO linear anode has the advantage of easy installation and handling as well being cost efficient

Application:

Typical uses for this anode include the impressed current cathodic protection of in-plant piping, buried oil (gas) pipelines, petrochemical container, tank bottoms and other underground structures.

Specification

Technical parameters	TB39-52
Anode diameter	39±2mm
Conductive polymer average thick	≥4mm
Conductive polymer volume resistance	1.5Ω.cm
In the 1mol/L sulfuric acid solution, 50 times of the normal current for electrolysis experiment	≥14 days
Put the 0.2 meter sample into the NaCl solution whose quality percentage is 3%,add 40mA current,test for a month	Consumption of coke breeze is 3% of radius of the visible inlet ring
Output current(max)	1500mA/m
Anode design life	≥40 years
Content of Coke breeze filler	≥ 98%
Coke breeze resistance	≤0.55 Ω·cm
Fabric jacket tube	Anticorrosion,permeable
Fabric jacket mesh	Wearproof,anti environmental temperature variability
Anode weight	≥1.3kg/m
Anode length(each unit)	500m(or made to order)

Composition

Material	Environment	Testing item	Typical value
Copper wire	20℃	Resistance	1.55×10¯³Ω∕m
Conductive polymer	23℃	Resistance rate	1.5Ω.cm
	23℃	Tensile strength	13
	23℃	Rupture and elongation rate	350
Coke packing layer	23℃	Resistance rate	0.5Ω.㎝
Coke packing layer		Carbon content	99.5%
Acid and alkali proof weaving layer	23℃	Rupture intensity	980N
Wear proof weaving web	In different electrolyte environment for 6 months	Tensile strength changes less than 20 %
